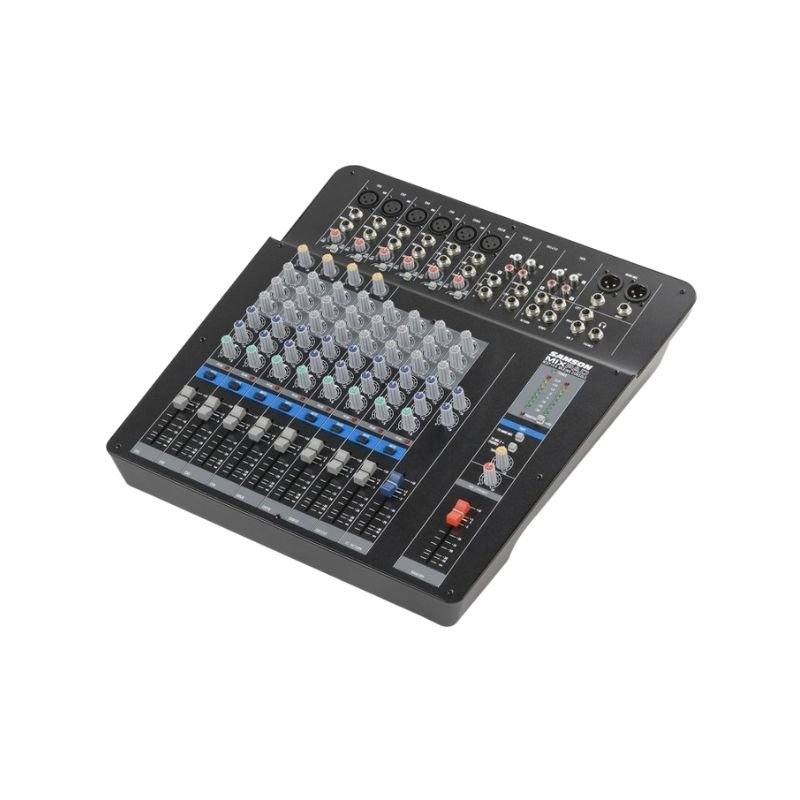

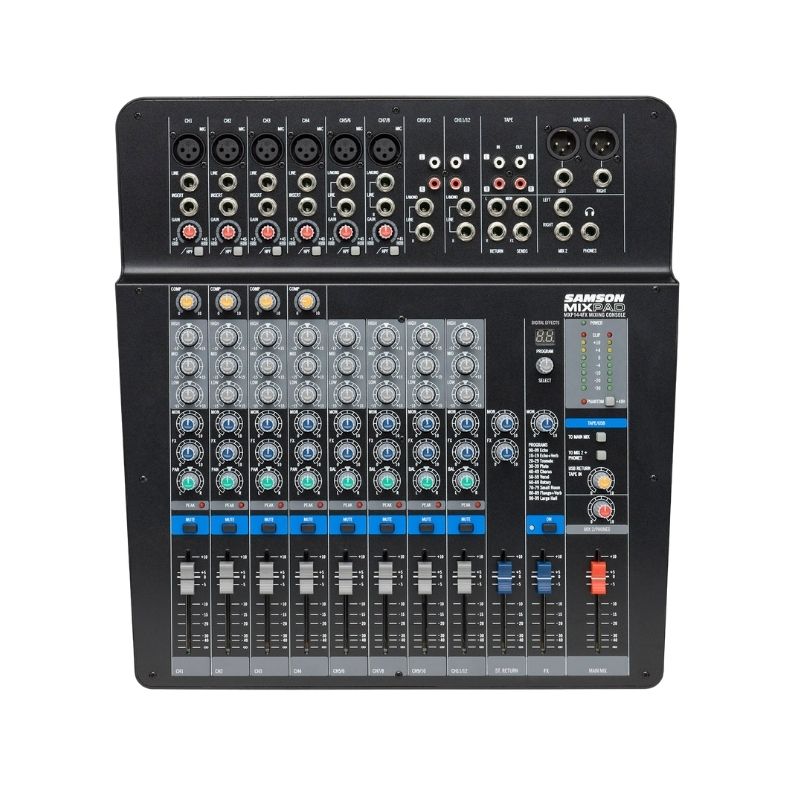

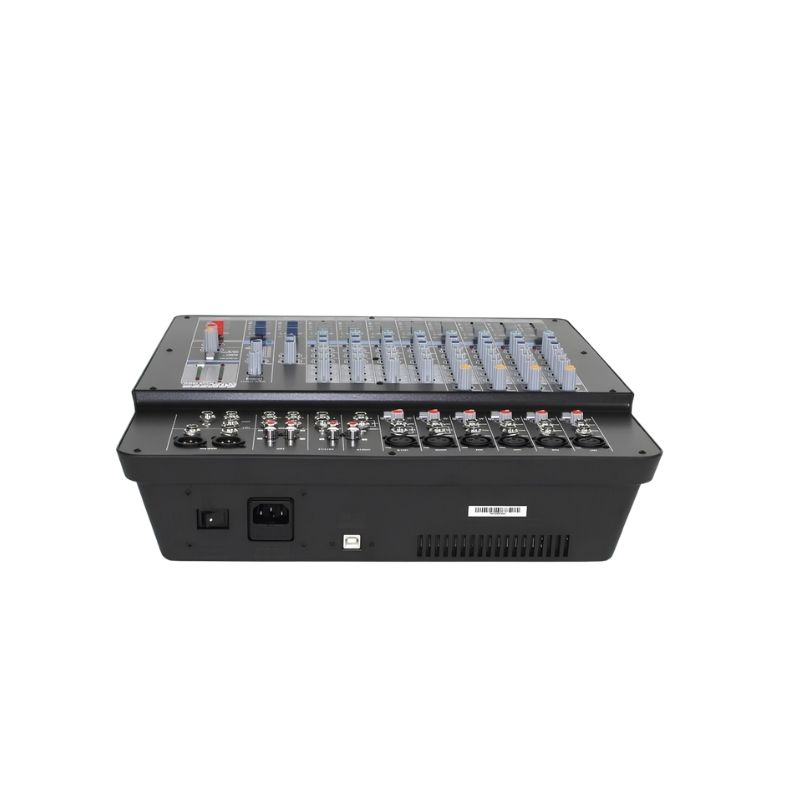

Samson-MXP 144FX Mixpad
R8,400.00
2 in stock
2 in stock
This item ships within 3 – 5 working days*
(As much as we strive to quicker than 3 – 5 working days, please allow for potential delays during busier times – this will be communicated once your order is processed. *If you are in an outlying area, delivery could be delayed and take up to 10-14 days.)
- Free Nation-Wide Delivery When You Spend R2000 Or More.
- 100% Satisfaction On Exchanges Or Returns.
- Money-Back Guarantee On Products Returned Within 7 Days.
- 5-Year Warranty On Home Theatre Speakers.
- 2-Year Warranty On Receivers & Wireless Speakers
Enquire About This Product
Samson-MXP 144FX Mixpad Description:
Like Samson products? Check out their Website at: https://samsontech.com/products/
The MixPad® MXP144FX 14-input analog stereo mixer with effects and USB demonstrates Samson's commitment to quality, affordability, and professional specifications. This lightweight mixer delivers the sonic clarity, ease-of-use, and premium performance that serious musicians demand.
Premium Value For Live Mixing
The MXP144FX features premium circuitry specifically designed to work with Samson's MDR (Maximum Dynamic Range) mic preamps to provide a wide frequency range, definitive channel separation and natural response. This ensures that all your mixes originate from pure, authentic audio signals, making the MXP144FX perfect for education, broadcast, band rehearsals, and other live sound applications.
Upgrade Your Mixes
With 100 low-noise, 24-bit digital effects, the MXP144FX offers a studio-inspired effects processor to add a professional touch to your mixes. The mixer also features a high-integrity, bi-directional USB connection for recording a mix into your favorite DAW or incorporating digital music files from your computer into a project.
Compact Powerhouse
The MXP144FX features six MDR mic preamps, with four channels equipped with single-knob compressors for studio-quality dynamic control without the need for constant tweaking of external gear. All channels on the MXP144FX are controlled by precision 60mm faders and feature 3-band EQ, gain trim, high-pass filter, and mute switch. In addition, each channel of the MXP144FX has a pre-fader aux send for your monitor mix and a post-fader aux send for routing external effects. Exceptional output flexibility makes the MXP144FX a worthy companion no matter the size of your venue, giving you precise fader control over your main mix (XLR and 1/4" outputs), as well as a Mix 2 output, headphone (phones) monitoring with level control, and an RCA tape output for recording your performance.
Bringing Your Sound to Life
The MXP144FX features selectable 48V phantom power, so you can mix in the warm, natural response of your favorite condenser mics. For live performance, the MXP144FX features brightly colored knobs and an 8-segment LED level meter for safe and efficient operation in dark environments.
Portable, easy to use, and packed with features that ensure optimal control over your performance, the Samson MixPad® MXP144FX represents a new era of possibilities for affordable live mixers.
Features
- Ultra-low noise, high headroom analog mixer
- Six Class A, MDR (Maximum Dynamic Range) mic preamps
- Four stereo channels with multiple input options (1/4” and RCA)
- High-integrity, bidirectional USB interface
- 100 24-bit, low-noise digital effects
- Four TRS inserts for external signal processing
- 3-band active EQ
- High-quality, precision 60mm faders
- Four single-knob, studio-quality compressors
- Pre-fader Aux Send for monitor mix
- Post-fader Aux Send for external effects
- All mic channels equipped with input Gain and high pass filters
- 48V Phantom Power for condenser microphones
- Multiple outputs: Main Mix, Mix 2, Phones and Tape
- XLR and 1/4" Main Mix outputs
- USB/Tape inputs assignable to Main Mix or Mix 2/Phones outputs
Specifications
Frequency Response (Trim @ Min, unity gain ± 3 dB)
- Mic to Main 20Hz~30KHz
- Line to Main 20Hz~30KHz
- Aux Return to Main 20Hz~30KHz
- Line to Aux Send 20Hz~30KHz
T.H.D. (Trim @ Min, +4dBu output, unity gain, 1 kHz w/30 kHz LPF)
- Mic/Line to Main (Mono Ch) <0.03%
- Line to Main (Stereo Ch) <0.03%
- Line to Aux Send <0.03%
Equivalent Input Noise (“A” filter on, input shorted)
- Mic (Trim @ Min﹐ Fader set ”0”) < -90dB 20HZ~30KHZ A-weighted
- Line (Trim @ Min﹐ Fader set ”0”) < -90dB 20HZ~30KHZ A-weighted
Maximum Voltage Gain
- Mic to Main (bal) 70dB
- Line to Main (bal) (Mono Ch) 43dB
- Line/Tape to Main (Stereo Ch) 33dB
- Aux Return to Main 25db
- Mic to Aux Send 75dB
- Line to Aux Send (Stereo Ch) 30dB
Residual Noise (30 kHz LPF, all control Min)
- Main (All fader min) -100dBu A-weighted
- Aux Send (All fader min) -105dBu A-weighted
Crosstalk (@ 1 kHz w/ 30 kHz LPF)
- Ch vs. Ch (Trim @ min﹐Fader set 0) >75dB A-weighted
- Input vs. Output >60dB A-weighted
Maximum Input Level (1 kHz, ± 3dB)
- Mic Input (Mono Ch) +16dBu
- Line Input (Mono Ch) +40dBu
Input Channel Equalizer (± 3dB)
- High ±15 dBu
- Mid ±15 dBu
- Low ±15 dBu
PEAK Indicators
- Mic (Mono Ch) +16dBu
- Line (Stereo Ch) +16dBu
Phantom Power 48V±3V
- Headphone output (600 ohm load) +20dBu
- Internal DSP Effects 100 presets
- USB Bus Power USB2.0 +5V DC 0.5A max
- Dimensions (W x D x H) 15.3” x 14.5” x 3.9” / 391mm x 370mm x 100mm
- Weight 8.3lb / 3.8kg
