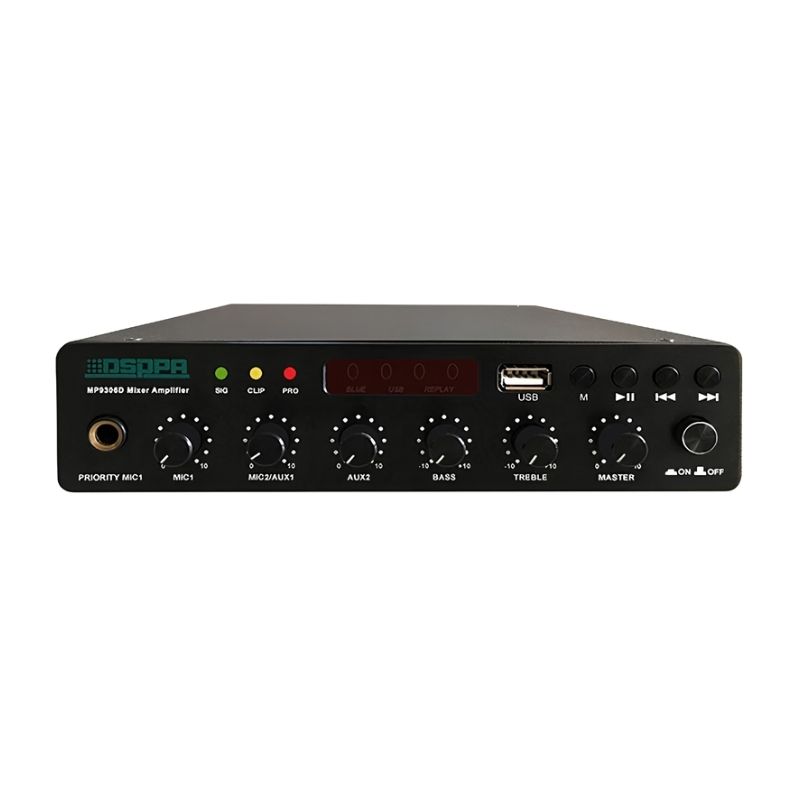

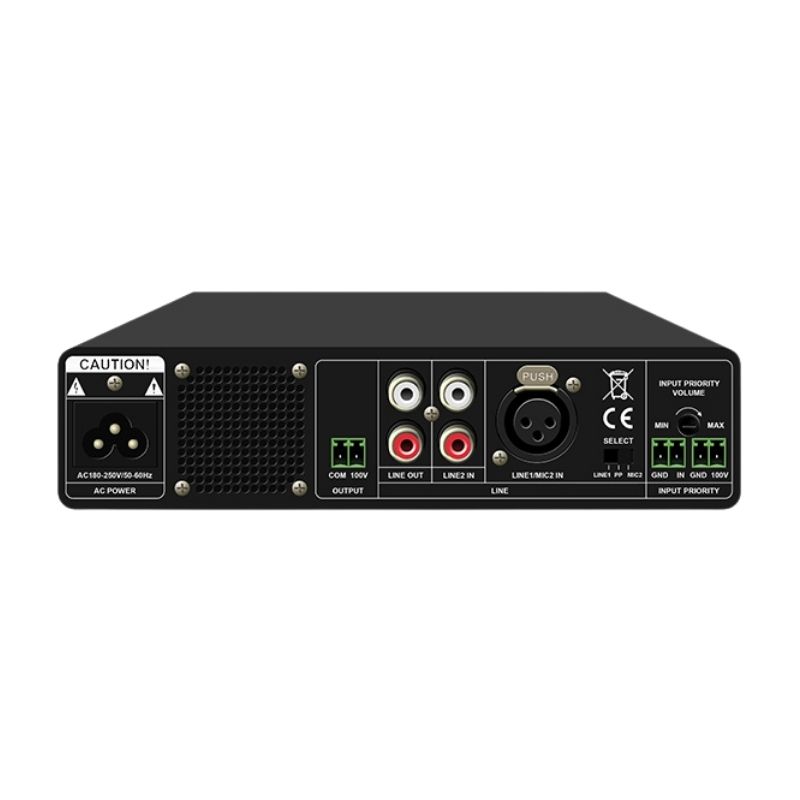

DSPPA-MP 9306U 60W Ultra-thin Digital Mixer Amplifier Description:

Like DSPPA products? Check out their Website at: https://www.dsppatech.com/

This versatile 100V mixer amplifier integrates Bluetooth, USB, and AUX playback with flexible MIC and LINE inputs, including phantom power and priority functions. It provides 100V constant-voltage speaker output and 1VRMS AUX output, with three-level priority control for reliable signal management. Independent volume and tone controls, remote control, and comprehensive overload, short-circuit, and temperature protection ensure convenient operation and stable performance.

Features

● With three working modes: Bluetooth, USB, and AUX.
● With wireless Bluetooth play function.
● With signal level indicator (SIG), clipping indicator (CLIP) and protection indicator (PRO).
● With 100VRMS priority LINE IN, normal signal priority LINE IN, and microphone priority LINE IN.
● 2 MIC IN, 1 channel with phantom power, and 1 channel with priority.
● 2 LINE IN, 1 channel with RCA, and 1 channel with XLR.
● With 2 outputs, 1-channel 100V constant-voltage amplifier output, and 1 channel 1VRMS AUX OUT.
● With three-level priority, PRIORITY IN on the rear panel with the highest priority, PRIORITY MIC1 with the second level priority, others with the lowest priority.
● With overload, short-circuit, and temperature protection function, and with temperature-controlled fan.
● With master volume control; independent volume control for MIC and LINE; treble and bass volume control.
● With remote control function.

Specification:

• Rated Output Power 60W (Note: Please use a constant-voltage speaker within the power range)
• Rated Output Voltage 100V
• Sensitivity MIC1 IN 0.005(±1mV)
• MIC2 IN 0.006(±1mV)
• LINE1 IN,LINE2 IN, PRIORITY IN 0.3(±20mV)VRMS
• PRIORITY IN-100V 100 VRMS
• SNR   MIC1, MIC2, LINE1 IN ≥74db(MAX.)
• LINE2 IN,INPUT PRIORITY ≥80dB(MAX.)
• Frequency Range 80Hz-15kHz (±3dB)
• THD ≤0.5%  (1K under normal working condition)
• Working Voltage AC180-250V/50-60Hz
• Tone  Bass ±10dB (100Hz)
• Treble ±10dB (10kHz)
• Rated Power Consumption 90W
• Package Dimensions (L×W×H) 310×275×120mm
• Machine Dimensions (L×W×H) 200×190×44mm
• Net Weight 1.5kg
• Gross Weight 2kg
