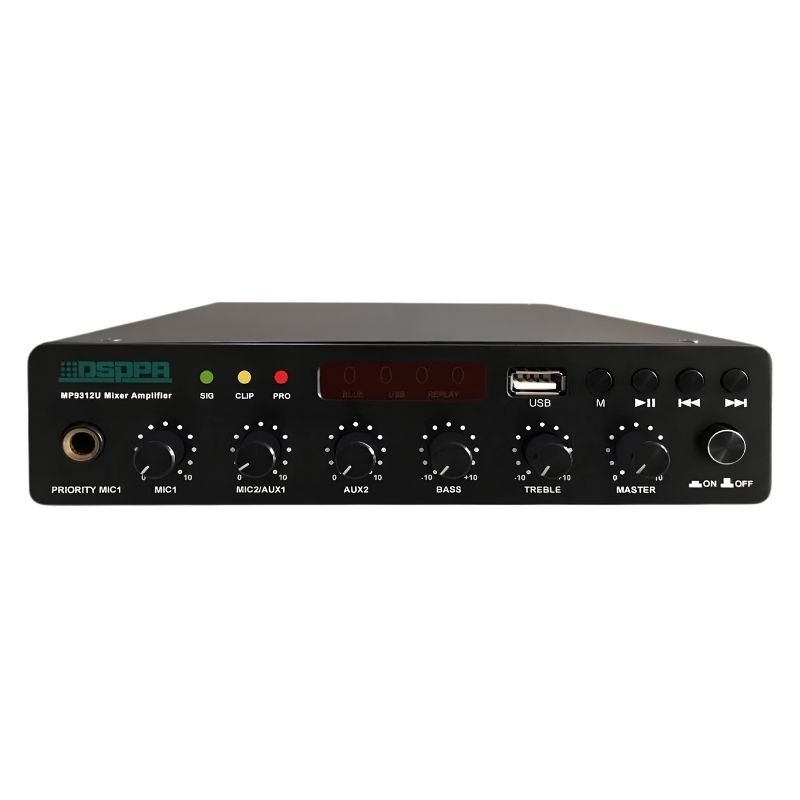

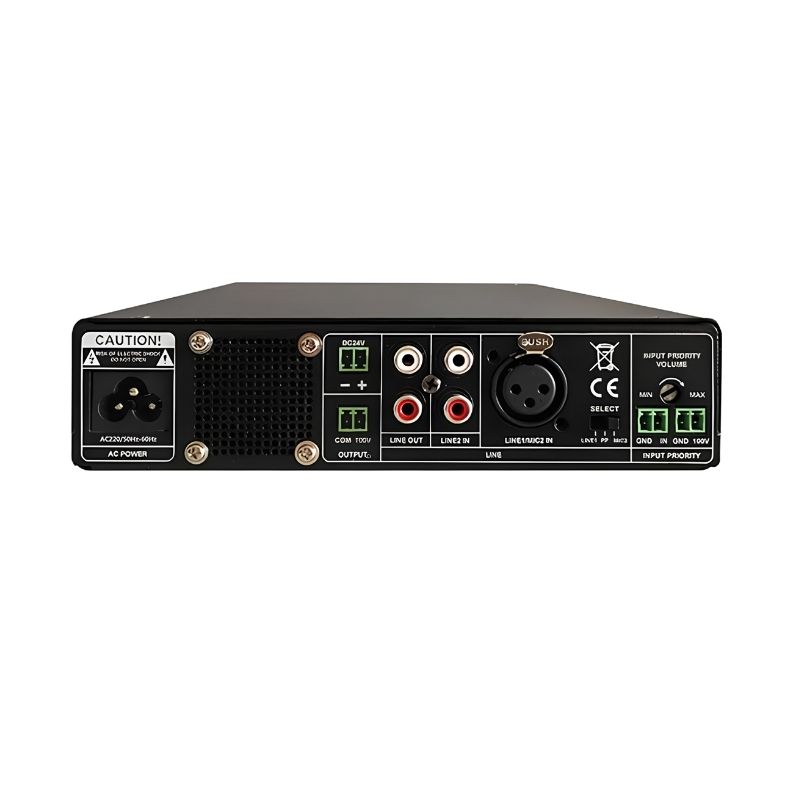

DSPPA-MP 9312U 120W Ultra-thin Digital Mixer Amplifier
R3,700.00
2 in stock
2 in stock
This item ships within 3 – 5 working days*
(As much as we strive to quicker than 3 – 5 working days, please allow for potential delays during busier times – this will be communicated once your order is processed. *If you are in an outlying area, delivery could be delayed and take up to 10-14 days.)
- Free Nation-Wide Delivery When You Spend R2000 Or More.
- 100% Satisfaction On Exchanges Or Returns.
- Money-Back Guarantee On Products Returned Within 7 Days.
- 5-Year Warranty On Home Theatre Speakers.
- 2-Year Warranty On Receivers & Wireless Speakers
Enquire About This Product
DSPPA-MP 9312U 120W Ultra-thin Digital Mixer Amplifier Description:
Like DSPPA products? Check out their Website at: https://www.dsppatech.com/
This versatile 100V mixer amplifier integrates Bluetooth, USB, and AUX media playback alongside flexible MIC and LINE input topology, complete with phantom power and priority ducking functionality. It supplies a 100V constant-voltage speaker output together with a 1VRMS AUX line output, leveraging a three-tier priority override hierarchy for seamless signal routing. Featuring independent volume and tone adjustment, remote control capability, and integrated protection against thermal overload, short circuits, and system overcurrent, this unit ensures operational convenience and continuous, rock-solid reliability.
Features
● Multi-source input modes: Bluetooth, USB, and AUX.
● Built-in wireless Bluetooth audio playback.
● Front-panel LED status indicators: SIG, CLIP, and PRO.
● Multi-tier priority inputs: 100V LINE IN, normal LINE IN, and MIC LINE IN.
● 2 MIC inputs: 1 channel with 48V phantom power, 1 channel with override priority.
● 2 LINE inputs: 1 RCA channel and 1 balanced XLR channel.
Specification:
- Rated Output Power 120W (Note: Please use a constant-voltage speaker within the power range)
- Rated Output Voltage 100V
- Sensitivity MIC1 IN 0.005(±1mV)
- MIC2 IN 0.006(±1mV)
- LINE1 IN,LINE2 IN, PRIORITY IN 0.3(±20mV)VRMS
- PRIORITY IN-100V 100 VRMS
- SNR MIC1, MIC2, LINE1 IN ≥74db(MAX.)
- LINE2 IN,INPUT PRIORITY ≥80dB(MAX.)
- Frequency Range 80Hz-15kHz (±3dB)
- THD ≤0.5% (1K under normal working condition)
- Working Voltage AC180-250V/50-60Hz
- Tone Bass ±10dB (100Hz)
- Treble ±10dB (10kHz)
- Rated Power Consumption 180W
- Package Dimensions (L×W×H) 310×275×120mm
- Machine Dimensions (L×W×H) 200×190×44mm
- Net Weight 1.5kg
- Gross Weight 2kg
