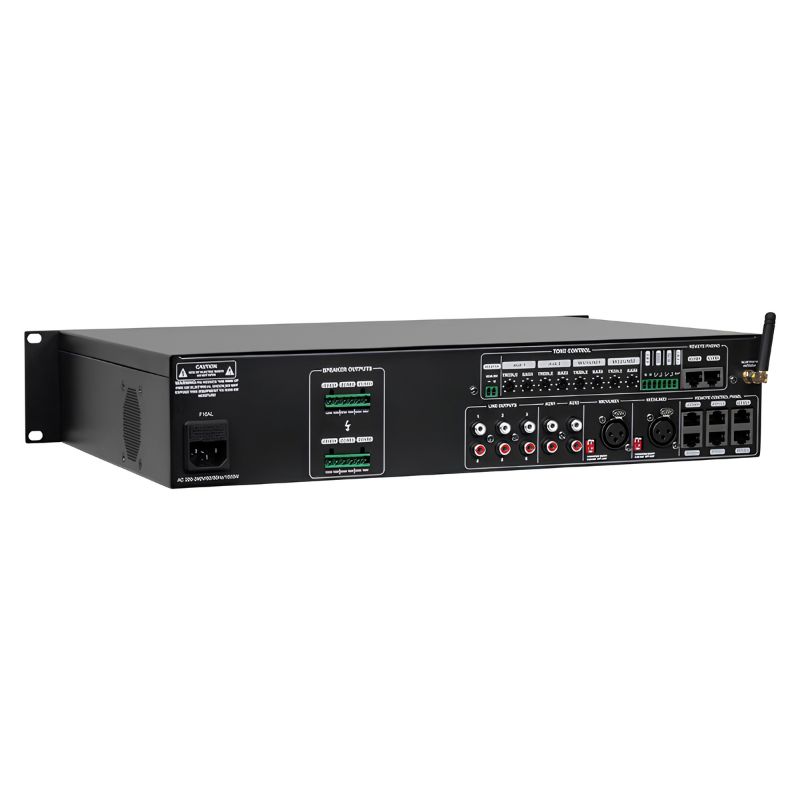

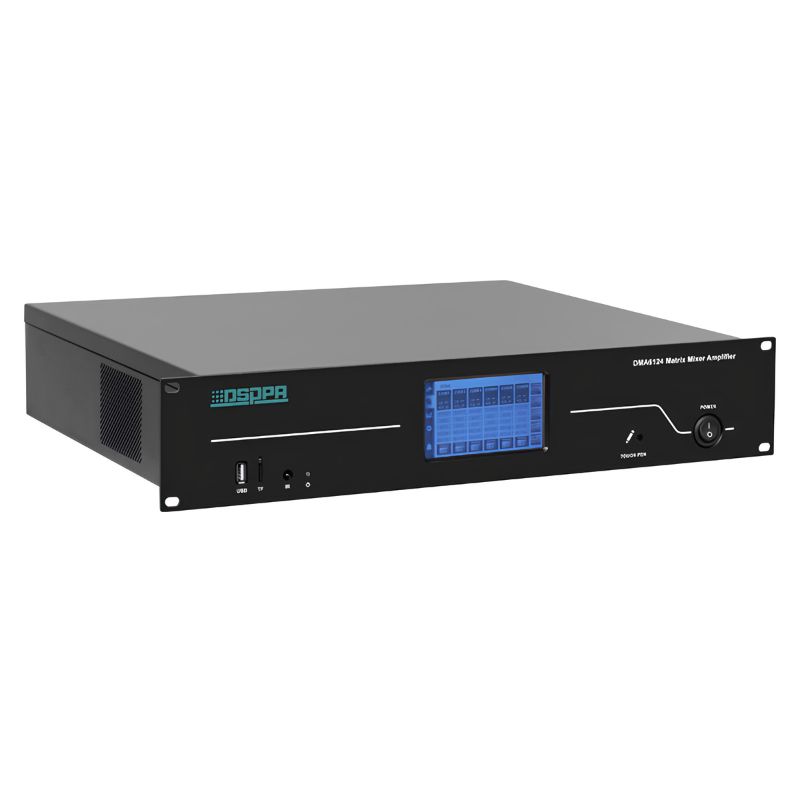

DSPPA DMA6124 240W Digital Audio Matrix Amplifier
R25,500.00
2 in stock
2 in stock
This item ships within 3 – 5 working days*
(As much as we strive to quicker than 3 – 5 working days, please allow for potential delays during busier times – this will be communicated once your order is processed. *If you are in an outlying area, delivery could be delayed and take up to 10-14 days.)
- Free Nation-Wide Delivery When You Spend R2000 Or More.
- 100% Satisfaction On Exchanges Or Returns.
- Money-Back Guarantee On Products Returned Within 7 Days.
- 5-Year Warranty On Home Theatre Speakers.
- 2-Year Warranty On Receivers & Wireless Speakers.
Enquire About This Product
DSPPA DMA6124 240W Digital Audio Matrix Amplifier Description:
Like DSPPA products? Check out their Website at: https://www.dsppatech.com/
The DMA6124 240W 6 Channels Digital Audio Matrix Amplifier is a newly designed and highly integrated audio matrix host system. This new system not only features an 8×6 signal matrix but also includes multimedia playback capabilities. It incorporates a six-channel output design that supports 100V constant voltage output. Additionally, it supports the DMA60M remote paging microphone with a glass panel touch button design and the DMA60W Bluetooth touch panel, both as expansion peripherals. The multi-function matrix PA hosts DMA6112 and DMA6124 are specified at 6×120W and 6×240W, respectively, both designed with a 2U chassis. The high degree of integration in these devices helps save space and reduce wiring complexity. They come with a comprehensive set of logical interfaces and a well-defined priority system, making them suitable for most small to medium-sized broadcast system applications. Additionally, they can be integrated with other systems for enhanced functionality.
Features:
● With a 4.3" resistive touch screen and a push-button power switch.
● Support 100V constant voltage function, configurable through the system.
● Chime function operable via the touch screen, with chimes and SIREN alarm sources changeable through USB.
● SIREN alarm function, which can be triggered by dry contacts (2P of 7P) of 3.81mm Phoenix connectors on the rear panel.
● With treble and bass adjustment for AUX1, AUX2, MIC1/LINE1, and MIC2/LINE2 (rear panel).
● With 2 XLR input connectors for MIC1/LINE1 and MIC2/LINE2, selectable among MIC with 48V phantom power, standard MIC, and LINE via separate dip switches.
● With 2 RCA line input connectors for AUX1 and AUX2 (rear panel).
● With zone monitoring function, with monitoring volume varying with zone volume.
● Priority level: MUTE > EMC IN > SIREN > CHIME > remote paging microphone > Bluetooth touch panel > AUX1 = AUX2 = MIC1/LINE1 = MIC2/LINE2 = MP3 = BT = FM.
● With 6 LINE OUT (RCA) output connectors (corresponding to channels).
● With 6 Bluetooth panel interfaces with fixed zone addresses, powered by DC 48V, with a maximum transmission distance of 300-600 meters for each channel. You can only be allowed to control the audio source and volume of the corresponding zone via the Bluetooth panel.
● With 2 RJ-45 remote paging microphone interfaces, allowing for specific-zone or all-zone paging. Up to 2 remote paging microphones can be cascaded, powered by DC 48V, with a maximum transmission distance of 300-600 meters for each channel. You can control the playback of AUX1 or MP3 player audio sources across all zones and adjust the volume of the source with the paging microphone.
● With 1×3.81mm Phoenix connector (1P of 7P) for FM antenna.
● With 1×3.81mm Phoenix connector (2P of 7P) for EMC IN.
● With 1×3.81mm Phoenix connector (2P of 7P) for MUTE.
● With 1×3.81mm Phoenix connector for MONITOR SPEAKER OUTPUT, to monitor signal output, linked with zone volume.
● With 6×2-pin 5.08mm terminal block power output interfaces.
● With one independent Bluetooth antenna.
● Designed for AC220-240V power supply.
Specification of DMA6124:
- AUX Input Sensitivity AUX1=AUX2=775±100mV
- MIC Input Sensitivity MIC1=MIC2=5±1mV
- LINE Input Sensitivity LINE1=LINE2=350±50mV
- Output Power 240W*6
- Distortion at Rated Power (Within Frequency Response Range) 95V<1% 100V<5%
- Microphone S/N Ratio A-Weighted ≥71dB
- Line S/N Ratio A-Weighted ≥76dB
- Line Input Frequency Response 80Hz-15kHz (under normal operating conditions ±3dB)
- Overload Source Electromotive Force ≧14dB (constant voltage)
- Operating Voltage AC220-240V
- Tone Adjustment Range Bass: ±10dB (100Hz), Treble: ±10dB (10kHz), both with an error of ±2dB
- LINE OUT Output Level 1000±100mV
- MIC1-2 Phantom Power 48V±5V
- Operating Temperature -10-50℃
- Package Dimensions 535×540×155mm
- Machine Dimensions 483×353×88mm
- Gross Weight 8.45kg
- Net Weight 6.95kg
